SAMPLE: Simple Bar Chart - ASP.NET

The information in this article applies to:

Swiff Chart Generator 3

This example illustrates how to generate a simple bar chart in ASP.NET

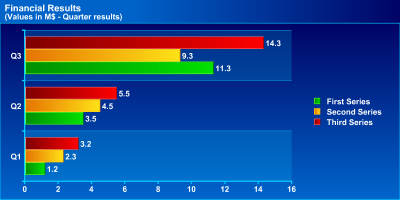

View result

using System;
using System.Data;
using System.Configuration;
using System.Collections;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;

using GlobFX.SwiffChartGenerator;

public partial class CSharp_QuickStarts_Bar : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        // Set the heading for the graph
        chart.Title= "Financial Results";
        chart.Subtitle= "(Values in M$ - Quarter results)";

        // Set chart categories
        chart.SetCategoriesFromArray( new string[] { "Q1", "Q2", "Q3" } );

        // Fill chart series
        chart.SetSeriesCaption( 0, "First Series" );
        chart.SetSeriesValuesFromArray( 0, new double[] { 1.2, 3.5, 11.3 } );

        chart.SetSeriesCaption( 1, "Second Series" );
        chart.SetSeriesValuesFromArray( 1, new double[] { 2.3, 4.5, 9.3 } );

        chart.SetSeriesCaption( 2, "Third Series" );
        chart.SetSeriesValuesFromArray( 2, new double[] { 3.2, 5.5, 14.3 } );

        // Apply a Bar style
        // The chart type is stored in the style file (*.scs)
        // Here the selected style is the predefined bar style "SanFrancisco"
        chart.LoadStyle( @"bar\SanFrancisco" );

        chart.Looping= false;
    }
}

Keywords:

ASP.NET Bar Chart

Swiff Chart Generator
